Chicken essence production line equipment

　　The chicken essence production line equipment adopts the form of integrated crushing, mixing, granulation, drying, cooling, screening, and fragrance adding sections, which not only has clear functions but also can be organically combined and operated in a coordinated manner. Achieve process flow operation. Used for mixing powdered or wet materials to ensure uniform mixing of different proportions of main and auxiliary materials. The contact between this machine and materials is made of stainless steel, with a small gap between the blades and the barrel body, and no dead corners during mixing. There are sealing devices at both ends of the mixing shaft to prevent material leakage. The hopper is controlled by a button, making it easy to discharge.

Characteristics of Chicken Essence Production Line Equipment

1、The material is uniformly heated, with sufficient heat exchange and high drying intensity, saving about 30% energy compared to ordinary dryers.

2、The vibration source is driven by a vibration motor, which operates smoothly, is easy to maintain, has low noise, and a long service life.

3、Fluidization is stable, with no dead corners or blowing through phenomena. The form of bed opening and the opening rate are crucial. The final moisture content and yield can be controlled by amplitude and feeding amount.

4、Good adjustability and wide adaptability.

5、It has minimal damage to the surface of materials and can be used for drying fragile materials. When the material particles are irregular, it does not affect the working effect. Significantly better than boiling beds.

6、Adopting a fully enclosed structure, it effectively prevents cross contamination between materials and air, and the working environment is clean.

Introduction to the Process of Chicken Essence Production Line

A Starting from the crushing process: crushing - mixing - granulation - drying - screening - finished product

B Starting from fresh chicken: fresh chicken - flavoring - cooking - colloid mill - enzymolysis - colloid mill - filtration - spray - chicken powder - grinding - mixing - granulation - drying - screening - finished product

Advantages of Chicken Essence Production Line

1、The chicken essence production line adopts a form of integrated crushing, mixing, granulation, drying, cooling, screening, and flavoring sections, which not only has clear functions but also can be organically combined and operated in a coordinated manner. Achieve process flow operation.

2、The core part of this production line is the drying system. Adopting a segmented heating method, the pre drying section adopts a high-pressure low air flow fan to fully fluidize the wet chicken essence particles; The drying section adopts a low-pressure and high air volume fan, which takes away more water per unit time and dries evenly; The cooling section adopts a high air flow fan, which can quickly remove heat, reduce product temperature, meet the requirements of moisture control, and facilitate subsequent packaging processes.

3、Drying medium circulation system: The blower, heater, and inlet duct are made of stainless steel to avoid the possibility of product contamination due to unclean air.

4、The drying machine adopts a quick opening structure between the upper and lower bed bodies, which changes the traditional form of bolt fixed connection, greatly facilitating the thorough cleaning of the system.

5、The hole pattern of the paving bed board adopts a combination structure, and the front section adopts a tongue shape, allowing the material to move forward smoothly without leakage; The middle and later stages use straight holes, which have a higher penetration rate of hot air and more sufficient heat exchange during the drying process.

6、The lower bed body is supported by stainless steel seamless steel pipes, which makes the bed structure more sturdy and has a long service life.

7、The interior of the lower bed is made of stainless steel fully welded seamless steel pipes, which prevent sewage from entering the insulation layer during cleaning, thereby affecting product quality. There is also a cleaning port for easy cleaning of equipment.

8、The system is also equipped with a dust suction and crushing unit, a high-speed mixer, a material conveying and conveying unit, and a screening and fragrance adding integrated unit.

Adopting a fully enclosed structure, effectively preventing cross contamination between materials and air, and ensuring a clean working environment

Matching dust removal equipment can be selected based on different materials

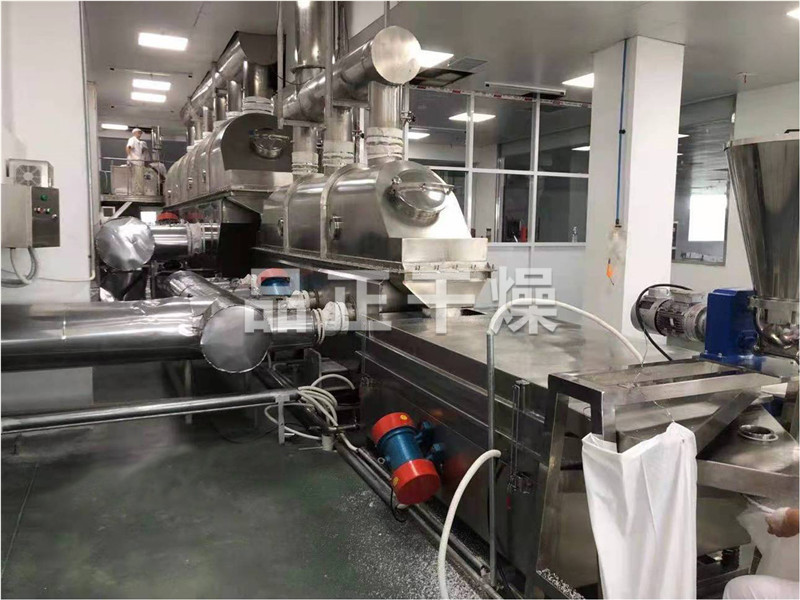

Tenghua Chicken Essence Production Line Officially Launched
