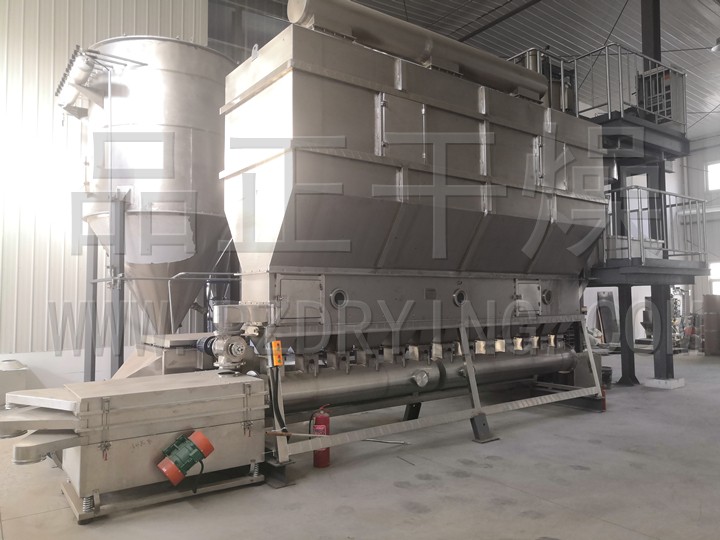

1. The horizontal boiling dryer can realize continuous production, easy operation, low labor intensity, automatic control of material flow in and out, easy operation and control of equipment output.

2. The bed plate adopts a precision mechanical perforated plate. The bed plate has a large opening rate and a large air supply, which can greatly improve the thermal efficiency of the boiling bed, and the wind direction is stable and consistent, which is convenient for the boiling and drying of materials, and the discharge is smooth and complete.

3. Multiple adjustable air distribution inlet pipes are made under the bed layer, which can well adjust the air inlet volume of each section of the bed layer to ensure the boiling effect of materials, which is conducive to the full use of heat, and thus improve the drying efficiency of the system.

4. A wide settling section is designed to reduce the wind speed in this section, and the material settling speed is fast, so as to prolong the residence time of the material in the drying room, so as to ensure that the material is fully dried and meet the final moisture requirement.

5. The system temperature can realize automatic operation and control, which meets the requirements of modern production.

6. The settling section of the drying machine is equipped with a quick-opening cleaning access door for easy cleaning and maintenance.

7. A muffler is added at the outlet of the induced draft fan to minimize the noise.

8. The specially customized blanking and dedusting system enables each batch of materials to be discharged within a few minutes after drying, which solves the problem of difficult discharging of the system equipment for a long time, greatly accelerates the drying rate and improves the economic benefits of users!
